Engineered Precision Castings

Precision accurate castings for demanding aerospace, medical and industrial applications from RapidProtoCasting^®

ACCURATE CASTINGS Accuracy refers to how close the measured value of a finished casting comes to the design engineering value. RapidProtoCasting can deliver castings with a mean variation from the design engineering value of less than 0.002" (0,04mm) by adjusting the initial patterns size prior to ceramic investing.

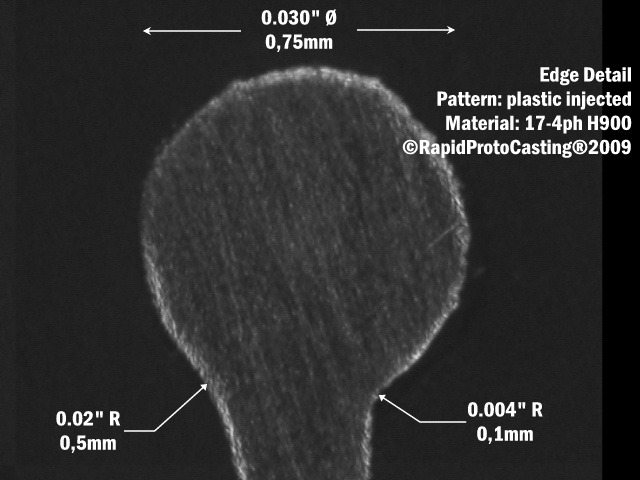

PRECISION CASTINGS Precision refers to the reproducibility or repeatability of a specific dimension for a group of finished castings. RapidProtoCasting can deliver finished precision castings with dimensional variations of +/- 0.002" (0,05mm) or less following process development.

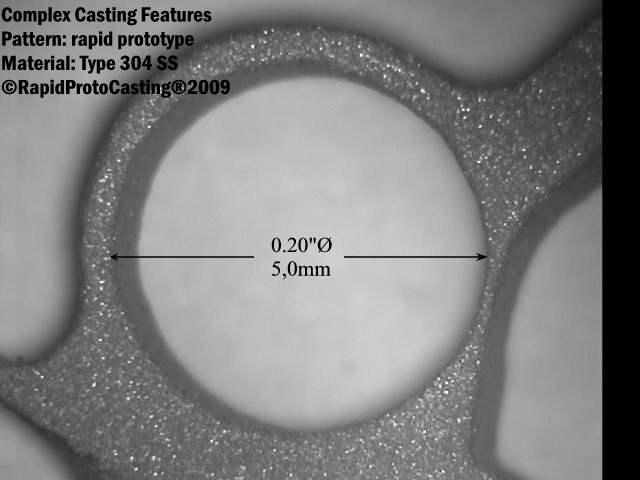

PRECISION PROTOTYPE CASTINGS Prototype castings manufactured using rapid prototype patterns will have casting accuracy and precision that will approximate production castings using wax-injected patterns. Prototype castings manufactured using machined plastic patterns may achieve casting precision and accuracy that may equal or exceed production castings manufactured using plastic-injected patterns.

PRECISION PRODUCTION CASTINGS Production castings manufactured using injected plastic-injected patterns will provide the most precise casting accuracy and precision.

RECOMMENDED GENERAL TOLERANCES Tolerances for engineered precision castings should be established for all features and fits based on their intended use. Where no specific tolerance is required for form, fit and function, RapidProtoCasting recommends the following general tolerances for use based on the type of pattern used in the lost-wax investment casting process. These general tolerances can be decreased using additional development cycles to adjust the pattern dimensions. Tolerances are taken from ISO 286-2:1988 ISO System of Limits and Fits, Standard Tolerances IT Class

• Rapid Prototype Patterns with fine resolution x:y:z: IT14.
• Wax Injected Patterns with machine finish tooling: IT13.
• Plastic Injected Patterns with EDN finish tooling: IT11.

For a complete discussion of general tolerance systems for castings please refer to our white paper RapidProtoCasting 200809 Standard Specifications for Casting Tolerances- Linear Dimensions.

	Basic Feature Dimension, up to and including, inches
	0.12	0.24	0.40	0.71	1.19	1.97	3.15	4.73	7.09	9.85
IT11	0.002	0.003	0.004	0.004	0.005	0.006	0.007	0.009	0.010	0.011
IT13	0.004	0.007	0.009	0.011	0.013	0.015	0.018	0.021	0.025	0.028
IT14	0.010	0.012	0.014	0.017	0.020	0.024	0.029	0.034	0.039	0.045
	Basic Feature Dimension, up to and including, mm
	3	6	10	18	30	50	80	120	180	250
IT11	0.06	0.075	0.09	0.11	0.13	0.16	0.19	0.22	0.25	0.29
IT13	0.10	0.18	0.22	0.27	0.33	0.39	0.46	0.54	0.63	0.72
IT14	0.25	0.30	0.36	0.43	0.52	0.62	0.74	0.87	1.00	1.15



CASTING PROCESS CAPABILITY Process capability compares the measured dimension of a developed engineered casting to the limits specified by the design casting dimension and tolerances and is expressed by capability indices. A developed engineered casting is one of a set of castings produced using a fixed set of pattern and foundry processes to an agreed upon design dimension and specific or general tolerances. Process capability is the ratio of the length between the process minimum and maximum dimensions (the specification "width") to the spread of the measured values around the design dimension as calculated using six standard deviations (the process "width").
